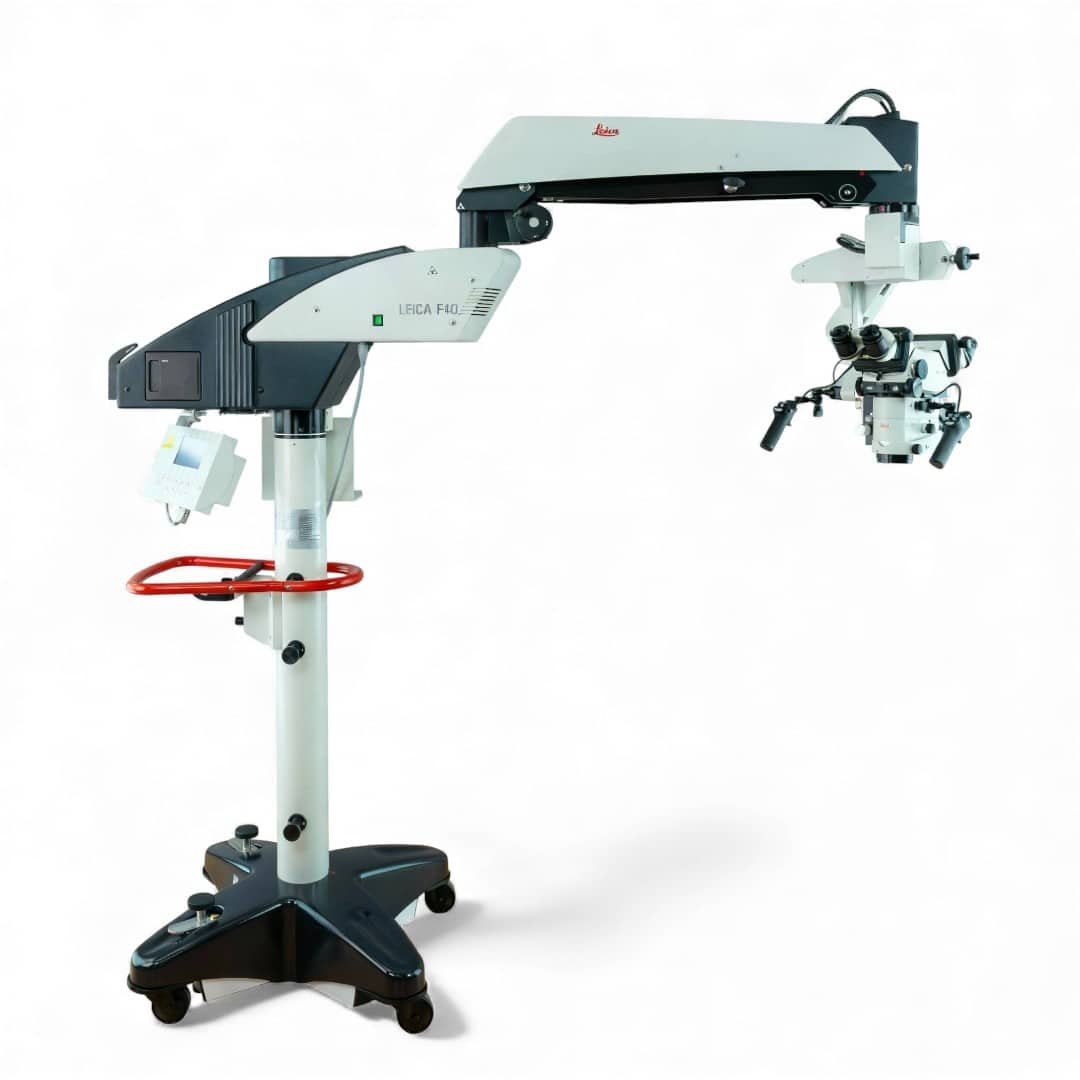

Leica M525 F40 for Neurosurgery

Elevate your surgical capabilities with the Leica M525 F40, a system engineered for the demanding requirements of modern Neurosurgical Microscope and Spine Surgery Microscope. This microscope combines Leica’s world-renowned OptiChrome™ optics with the highly ergonomic Leica F40 Stand, offering the perfect balance of optical brilliance and effortless maneuverability.

Designed for safety and ease of use, the leica m525 f40 price allows surgeons to focus entirely on the patient, providing crystal-clear visualization even in deep, narrow channels.

Key Features & Benefits:

• Superior OptiChrome™ Optics: Experience high resolution, outstanding contrast, and extended depth of field. The optical system provides natural color fidelity and sharp detail, essential for distinguishing fine tissue structures in deep cavities.

• Intelligent Patient Safety:

  • BrightCare™: Automatically adjusts light intensity based on the working distance to prevent thermal tissue damage (burns) during long procedures.

  • AutoIris™: Automatically adjusts the diaphragm diameter as you zoom, ensuring only the visible area is illuminated, keeping surrounding tissue cool.

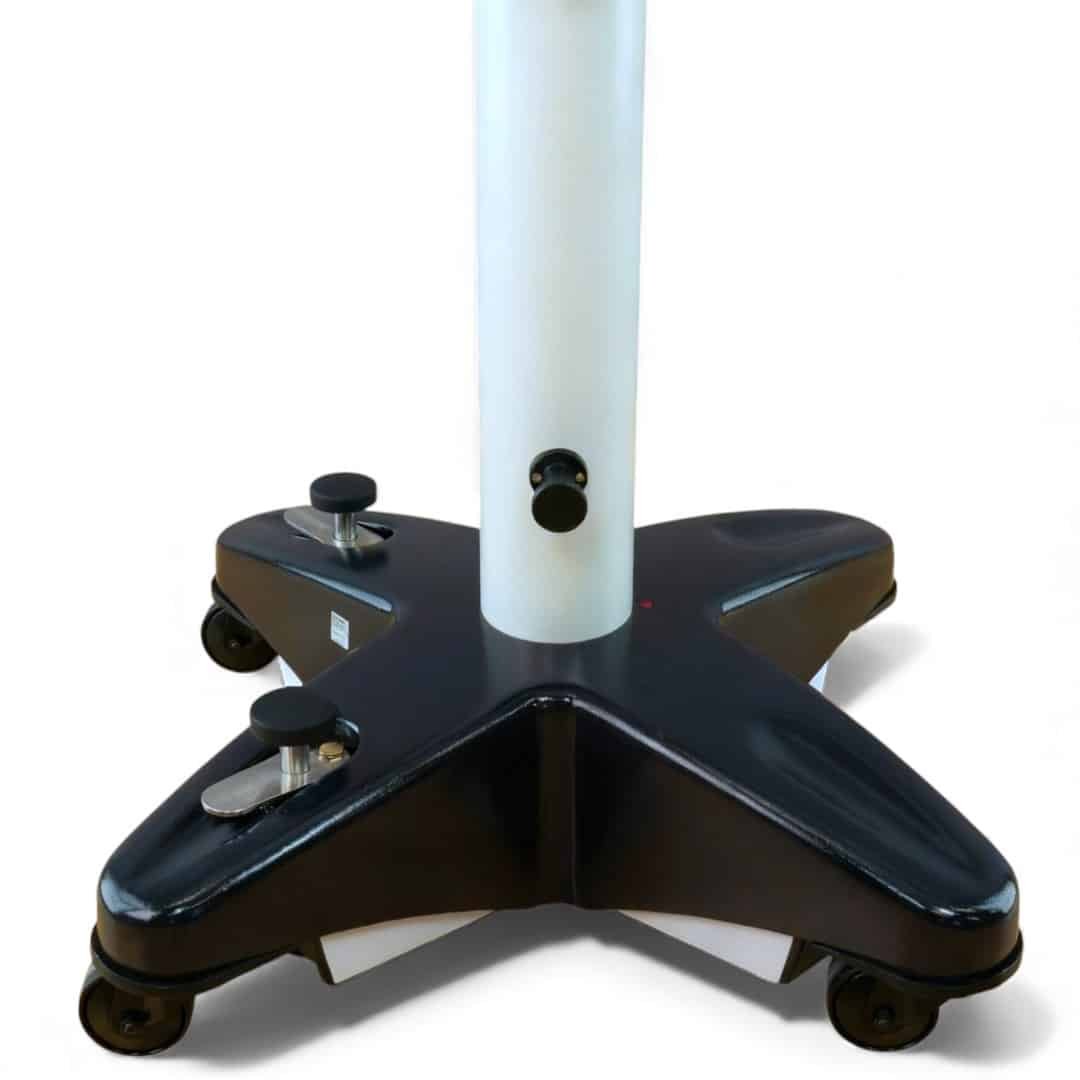

• Space-Saving F40 SlimStand™: Ideally suited for crowded operating rooms. The stand features a compact base but offers a long reach, allowing it to be positioned far from the operating table while still extending easily over the patient.

• Effortless Movement: Equipped with advanced electromagnetic brakes and a precision balancing system, the microscope moves as if it were weightless, locking instantly into place for stable viewing.

• IGS Ready: Open architecture design allows for seamless integration with major Neuronavigation (IGS) systems and vascular fluorescence modules.

Parameters:

Zoom adjustment from 1,2x to 12,8x
Magnification of the eyepieces (Doctor): 10x
Magnification of the eyepieces (Assist): 10x
Inclinable binocular tube 30° – 150° (Doctor)
Inclinable binocular tube 30° – 150° (Assist)
Objective lens: f = 207 mm to 470 mm (multifocal lens)
Leica AutoIris: magnification-controlled illumination diameter automatically works with the zoom, providing a field of illumination that is only as wide as the surgeon’s field of view

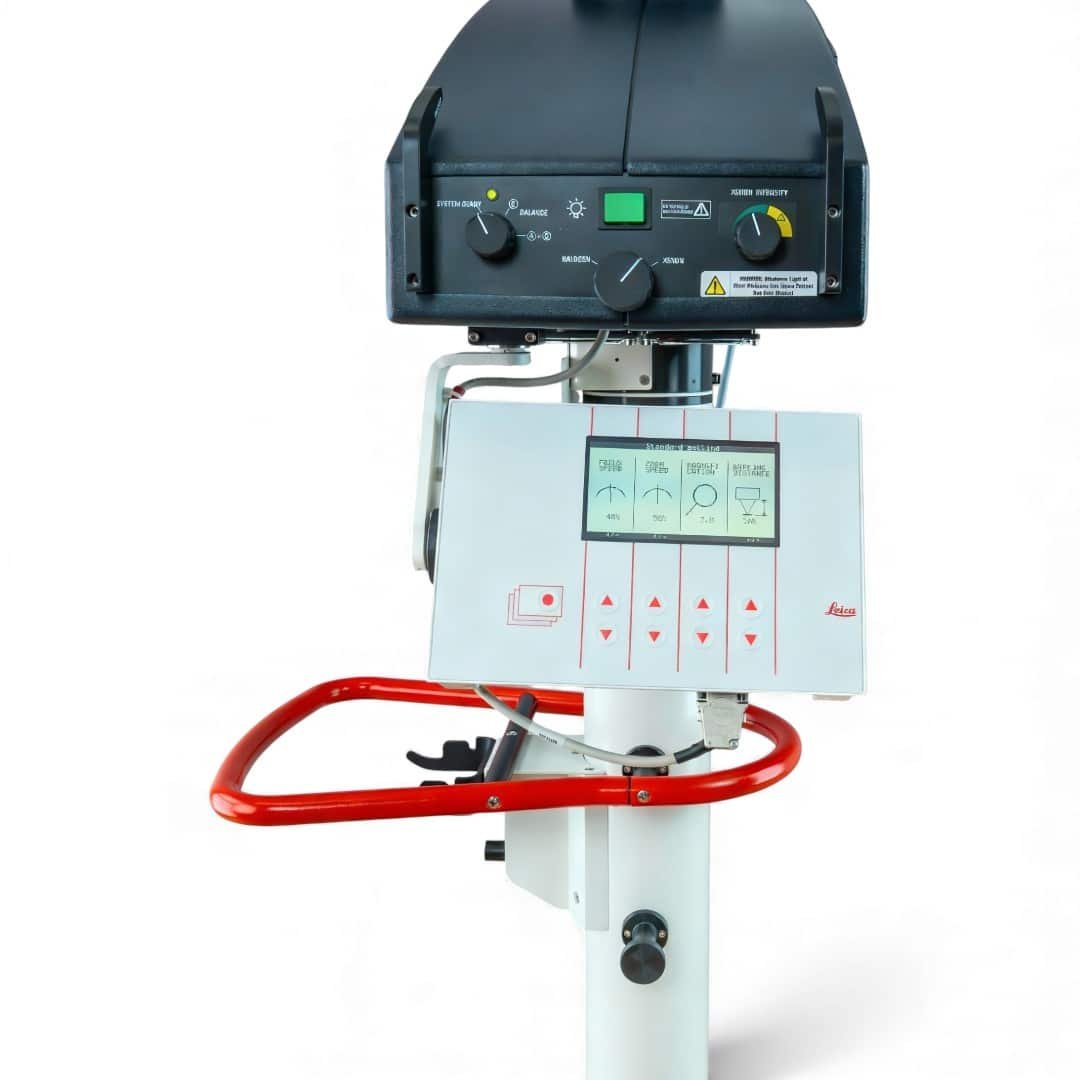

Control Unit: graphic LCD data display, menu provides up to 8 user-specific configurations

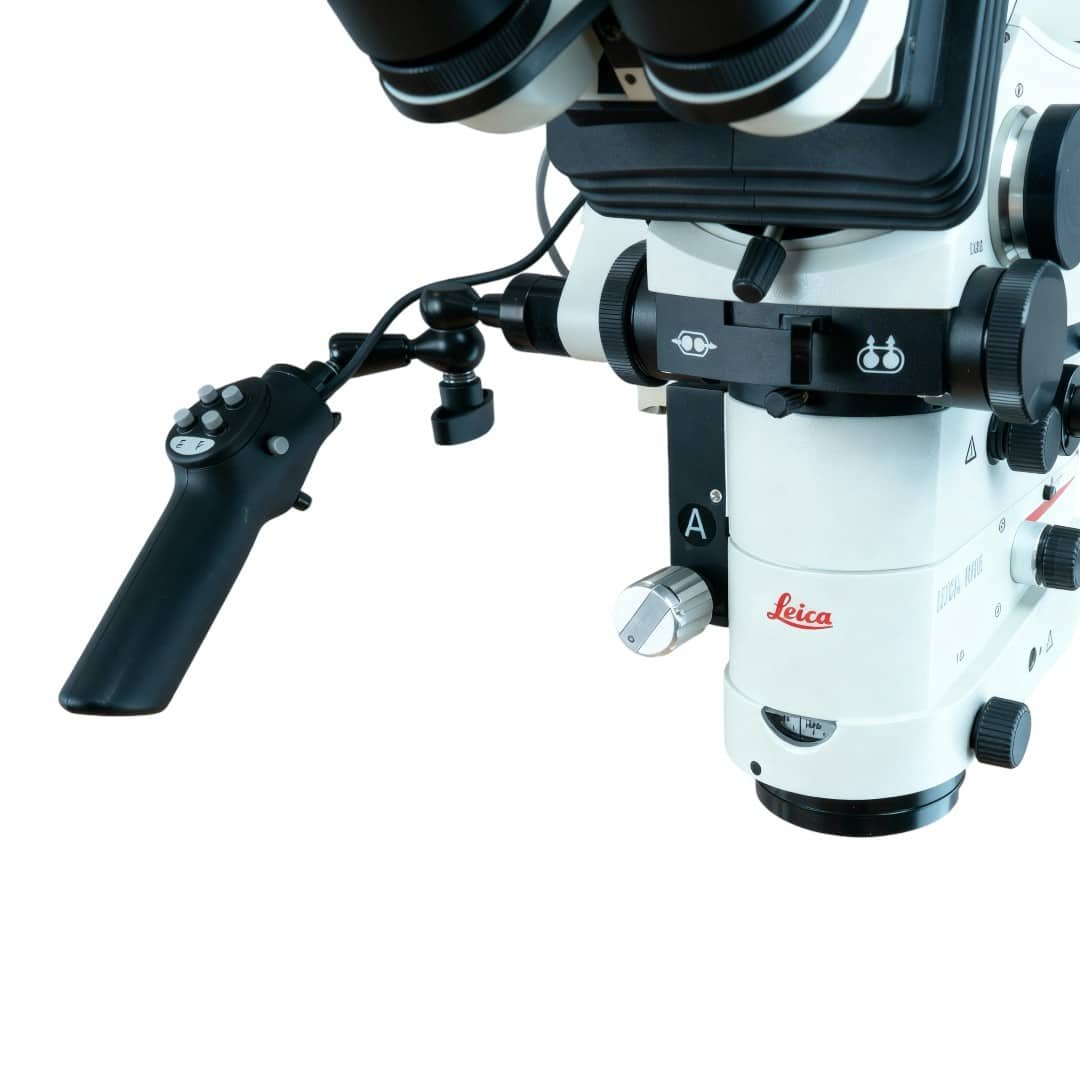

Handgrips: includes free programmable buttons
Light source with fiber optic
Back-up lamp module with halogen lamp included
Main illumination: Xenon lamp 300W
Emergency lamp: Halogen lamp 150W
Power supply: 100/240 V / 50-60 Hz

Technical Specifications:

• Optics: Leica M525 OptiChrome™ System

• Magnification: Motorized 6:1 Zoom

• Focus: Motorized Multifocal (Variable working distance 207 mm – 470 mm)

• Illumination: High-intensity 300W Xenon Arc Lamp

• Stand: F40 Floor Stand with 6 electromagnetic brakes

Accessories:

Leica M525 Optics
Varioskop objective lens: continuous motorized focusing
Leica F40 Floor Stand
Leica ULT 500: Face-to-Face Bridge
Binocular tube (Doctor): Inclinable binocular tube 30° – 150°
Binocular tube (Assist): Inclinable binocular tube 30° – 150°
Leica AutoIris
Control Unit with LCD-screen
Programmable buttons on handgrips
Back-up lamp module with xenon lamp included
